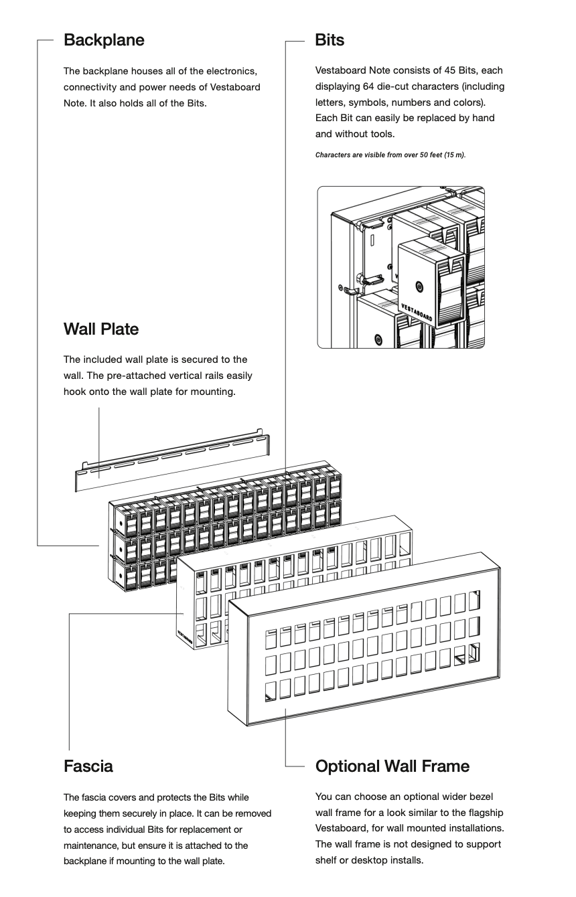

Vestaboard Note consists of five main components as seen in the diagram below. Download our Installation Guide for more details:
- Backplane - The backplane houses all of the electronics, connectivity and power needs of Vestaboard. It also holds all of the Bits.
- Bits - Vestaboard Note consists of 45 Bits, with each capable of displaying 64 die-cut characters (including letters, symbols, numbers and colors). Each Bit can easily be replaced by hand and without tools.
- Fascia - The fascia covers and protects the Bits while keeping them securely in place. It is required for sending messages to the Vestaboard Note, but can be removed to access individual Bits for replacement or maintenance.
- Wall Plate - The included wall plate is secured to the wall. The included and attached brackets easily hook onto the wall plate for easy installation.
- Frame (optional) - The Vestaboard frame is made from beautifully finished 5052-H32 and 6063 aluminum. You can remove the frame to access the backplane and Bits if necessary.
