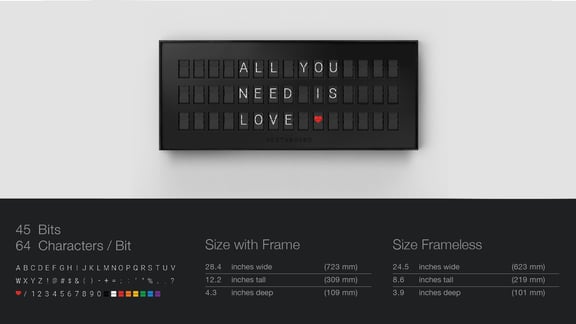

Technical specifications for the Vestaboard Note can be found below. Download our Installation Guide for more details.
Dimensions - Frameless
24.5 inches wide (623 mm)
8.6 inches tall (219 mm)
3.9 inches deep (101 mm)
Dimensions - With Frame
28.4 inches wide (723 mm)
12.2 inches tall (309 mm)
4.3 inches deep (109 mm)
Weight
16 lbs (7.3 kg) without frame
23.4 lbs (10.6 kg) with frame
Vestaboard Note can be used with or without frame.
Connectivity
802.11 a/b/g/n embedded Wi-Fi / Ethernet port
Supports 2.4 and 5 GHz networks
Characters
55 alphanumeric characters
8 color characters (B,W,R,O,Y,G,B,V)
1 heart
Displays up to 45 characters at once
